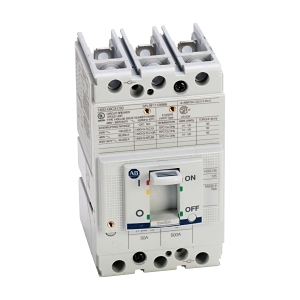

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 80A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C3C80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 80A
Technical Specifications
- Rated ultimate short circuit breaking capacity: 70 kA at 415 V
- Rated service short circuit breaking capacity: 35 kA at 415 V
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 14.4 W
- Maximum operating temperature: 75 °C
- Storage temperature: -40 to 80 °C
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Rated current: 80 A
- 3 poles configuration
- 70 kA short circuit breaking capacity at 415 V
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in electrical installations
- Commercial: Suitable for use in commercial buildings and facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 3P 80A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
