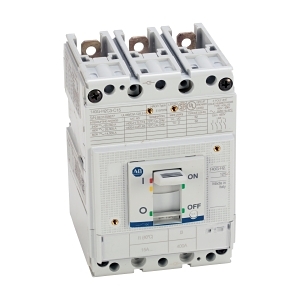

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 25A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH2C3C25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Suitable for Isolation: Yes
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 5.4 W
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- Rated short circuit breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability, reducing the risk of electrical failures.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 3P 25A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
