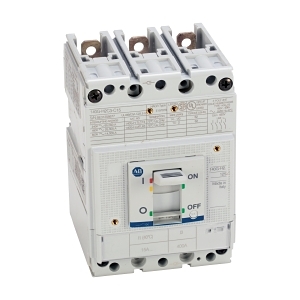

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 32A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH2C3C32
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 10 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Power Loss: 7.8 W
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: -40 to 75 °C
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection, machinery, and equipment
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 3P 32A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
