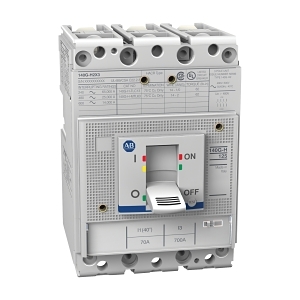

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 70A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH2C3C70
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 70A
Technical Specifications
- Rated ultimate short circuit breaking capacity: 36 kA at 415 V 50 Hz
- Rated service short circuit breaking capacity: 36 kA at 415 V 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 13.3 W
- DIN rail mounting optional
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Rated current: 70 A
- 36 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 3P 70A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
