Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB H Frame 36kA 3P 80A Adjustable Thermal Magnetic

Trade Discount 25%

SKU: 140GH2F3C80

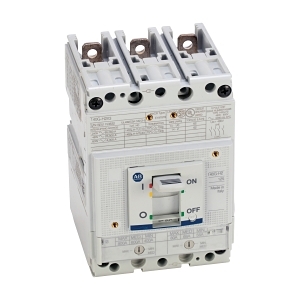

Allen-Bradley 140G MCCB H Frame 36kA 3P 80A Adjustable Thermal Magnetic

$418.80 List price: $556.10

+ −

30 Days Return Delivery Options

Weight: 1.200 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 80A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GH2F3C80

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 80 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 56-80 A
Instantaneous Protection Adjustment Range: 400-800 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 10 kA
Rated Short Circuit Breaking Capacity (ICS): 10 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 17.4 W
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for reliable short circuit protection.
Suitable for isolation and can handle reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 80A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
