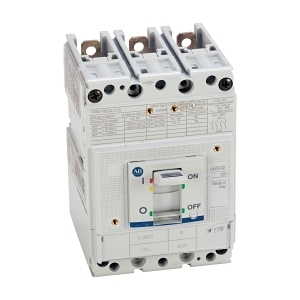

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 4P 30A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH2C4C30
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 30A
Technical Specifications
- Rated Current: 30 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 10 kA at 690 V AC
- Rated Short Circuit Breaking Capacity (ICS): 10 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 9.1 W
- Suitable for DIN Rail Mounting: Yes
- Dimensions (H x L x W): 130mm x 116mm x 120mm
- Weight: 1.6 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- Rated short circuit breaking capacity of 36 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 4P 30A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
