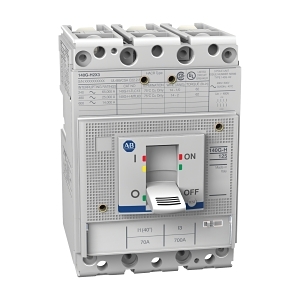

Product Name/Title: Allen-Bradley 140G MCCB H Frame 50kA 3P 32A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH3C3C32
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated current: 32 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 50 kA
- Rated service short circuit breaking capacity: 50 kA
- Type of protection: Thermal/magnetic release
- Trip curve: Fixed thermal, fixed magnetic
- Frame size rating: 160 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity at 690 V: 12 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Power loss: 7.8 W
- Mechanical life: 25000 cycles
- Rated surrounding temperature: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Rated current: 32 A
- Three poles for enhanced circuit protection
- Fixed thermal and magnetic trip unit for reliable operation
- High breaking capacity of 50 kA at 415 V
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame 50kA 3P 32A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
