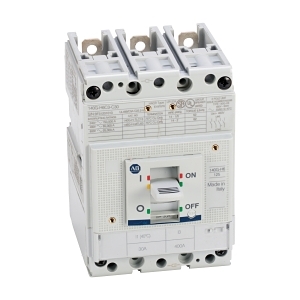

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 25A Electronic LSIG
Brand: NHP
SKU: 140GH6I3C25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 25A
Technical Specifications
- Rated Current: 25 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 10-25 A
- Instantaneous Protection Adjustment Range: 25-250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 8000 cycles
- Power Loss: 2.4 W
- Mechanical Life Service Cycles: 25000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in electrical systems
- Commercial: Suitable for use in commercial buildings and facilities
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 3P 25A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial applications.
