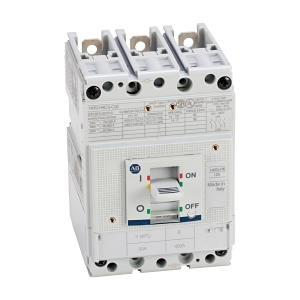

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 40A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH6C3C40
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life: 8000 cycles
- Power Loss: 11.1 W
- DIN Rail Mounting: Optional
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 70 kA for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 3P 40A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
