140GH6C3C70

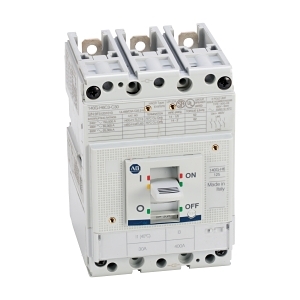

Allen-Bradley 140G MCCB H Frame 70kA 3P 70A Fixed Thermal Magnetic


$488.60 List price: $648.80
+

Weight: 1.200 kg

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 70A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH6C3C70

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 70A

Technical Specifications
  • Rated current: 70 A
  • Number of poles: 3
  • Max rated operation voltage: 690 V
  • Rated ultimate short circuit breaking capacity: 70 kA
  • Rated service short circuit breaking capacity: 70 kA
  • Type of protection trip unit: Thermal/magnetic release
  • Trip curve: Fixed thermal, fixed magnetic
  • Frame size rating: 160 A
  • Rated frequency: 50-60 Hz
  • Rated insulation voltage: 1000 V
  • Suitable for isolation: Yes
  • Rated short circuit breaking capacity at 690 V: 15 kA
  • Rated impulse withstand voltage: 8 kV
  • Electrical life at rated current: 8000 cycles
  • Power loss: 13.3 W
  • Mechanical life service cycles: 25000 cycles
  • Rated surrounding temperature without derating: 40 °C
  • Maximum operating temperature: 75 °C
  • Storage temperature: -40-80 °C
  • Max altitude before derating: 2000 m
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Rated current: 70 A
  • Three poles for versatile applications
  • Thermal/magnetic release for reliable protection
  • High breaking capacity of 70 kA
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection, power distribution
  • Commercial: Electrical panels, machinery
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame 70kA 3P 70A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable
