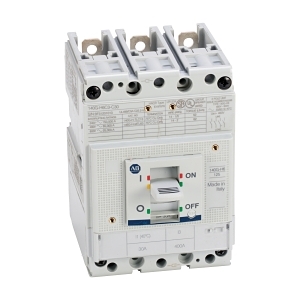

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 4P 160A Electronic LSI
Brand: NHP
SKU: 140GH6H4D16
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 160A
Technical Specifications
- Rated Current: 160 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 64-160 A
- Instantaneous Protection Adjustment Range: 160-1600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Short Time Protection Adjustment Range: 160-1600 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Power Loss: 33.8 W
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 120mm
- Weight: 1.6 kg
Key Features
- Electronic release trip unit for precise protection.
- Rated short circuit breaking capacity of 70 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for isolation and circuit protection in various electrical installations
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 4P 160A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
