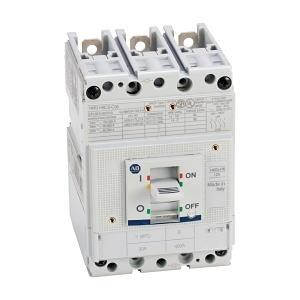

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 4P 25A Electronic LSI
Brand: NHP
SKU: 140GH6H4C25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 25A, Electronic LSI MCCB
Technical Specifications
- Rated Current: 25 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 10-25 A
- Instantaneous Protection Adjustment Range: 25-250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 15 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Short Time Protection Adjustment Range: 25-250 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 8000 cycles
- Power Loss: 3.2 W
- Mechanical Life Service Cycles: 25000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 120mm
- Weight: 1.6 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA for reliable performance.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 70kA 4P 25A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
