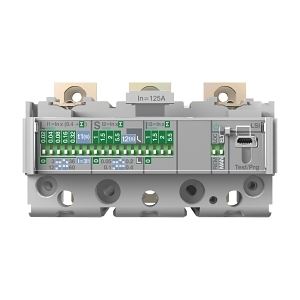

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 3P 120A Electronic LSI
Brand: NHP
SKU: 140GHTH3D12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit
Technical Specifications
- Rated Current: 120 A
- Number of Poles: 3
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 40-100 A
- Instantaneous Protection Adjustment Range: 125-1250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage Ui: 1000 V
- Short Time Protection Adjustment Range: 125-1250 A
- Rated Impulse Withstand Voltage Uimp: 8 kV
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 150mm x 120mm x 90mm
- Weight: 1.5 kg
Key Features
- Electronic release for precise trip settings.
- LSI trip curve for enhanced protection.
- Rated current of 120 A with 3 poles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame Trip Unit 3P 120A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
