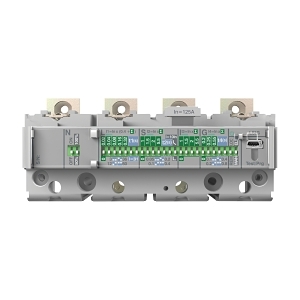

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 4P 120A Electronic LSIG
Brand: NHP
SKU: 140GHTI4D12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit
Technical Specifications
- Rated Current: 120 A
- Number of Poles: 4
- Type of Protection: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 72-120 A
- Instantaneous Protection Adjustment Range: 125-1250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment Range: 125-1250 A
- Rated Impulse Withstand Voltage: 8 kV
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 150mm x 120mm
- Weight: 2.5 kg
Key Features
- Electronic release for precise trip settings.
- LSIG trip curve for comprehensive protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame Trip Unit 4P 120A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
