Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB H Frame Trip Unit 4P 70A Fixed Thermal

Trade Discount 25%

SKU: 140GHTC4C70

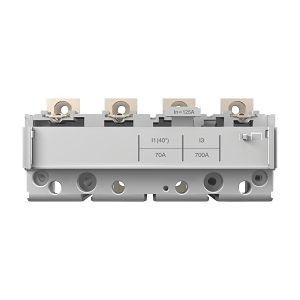

Allen-Bradley 140G MCCB H Frame Trip Unit 4P 70A Fixed Thermal

$128.40 List price: $170.50

+ −

30 Days Return Delivery Options

Weight: 2.500 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 4P 70A Fixed Thermal

Brand: NHP

SKU: 140GHTC4C70

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 70 A
Number of Poles: 4
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 200mm x 150mm x 120mm
Weight: 2.5 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
Rated current of 70 A with a 4-pole configuration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed to operate efficiently in a wide range of temperatures.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame Trip Unit 4P 70A Fixed Thermal is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
