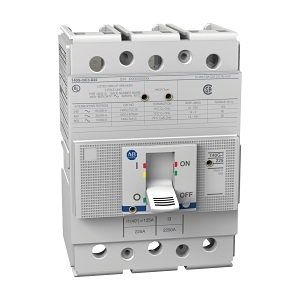

Product Name/Title: Allen-Bradley 140G MCCB I Frame 35kA 4P 225A Moulded Case Switch Isolator
Brand: NHP
SKU: 140GI3S4D22
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator
Technical Specifications
- Rated current: 225 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 50 kA
- Rated service short circuit breaking capacity: 25 kA
- Rated insulation voltage: 800 V
- Rated frequency: 50-60 Hz
- Rated impulse withstand voltage: 8 kV
- Power loss: 57.6 W
- Reverse connection of supply possible: Yes
- Dimensions (H x L x W): 150mm x 101mm x 140mm
- Weight: 2.1 kg
Key Features
- Rated current: 225 A
- 4 poles for versatile applications
- High breaking capacity of 50 kA at 415 V
- Suitable for isolation and non-auto switch protection
- Mechanical life of 25,000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB I Frame 35kA 4P 225A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
