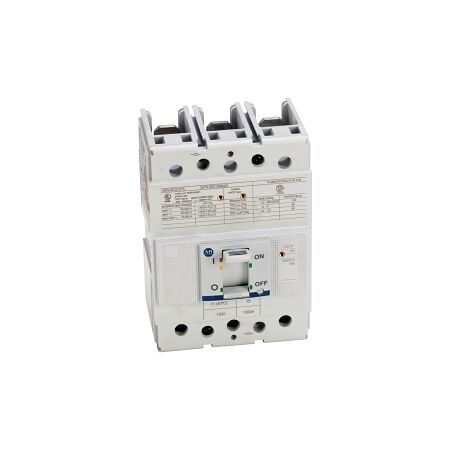

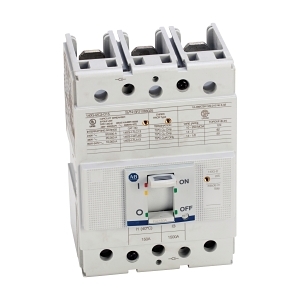

Product Name/Title: Allen-Bradley 140G MCCB I Frame 36kA 3P 80A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GI2C3C80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 80A
Technical Specifications
- Rated current: 80 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 27 kA
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Rated short circuit breaking capacity at 690 V: 5 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 14.4 W
- Dimensions (H x L x W): 150mm x 101mm x 105mm
- Weight: 1.7 kg
Key Features
- Rated current: 80 A
- 36 kA short circuit breaking capacity at 415 V
- Thermal/magnetic release trip unit
- Fixed thermal and fixed magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Allen-Bradley 140G MCCB I Frame 36kA 3P 80A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
