Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB J Frame 36kA 3P 60A Electronic LSI

Trade Discount 25%

SKU: 140GJ2H3C60

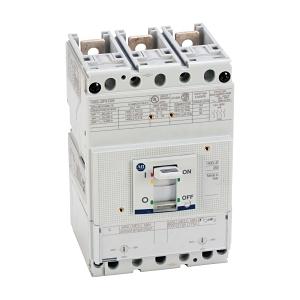

Allen-Bradley 140G MCCB J Frame 36kA 3P 60A Electronic LSI

$1,070.20 List price: $1,421.10

+ −

30 Days Return Delivery Options

Weight: 2.500 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB J Frame 36kA 3P 60A Electronic LSI

Brand: NHP

SKU: 140GJ2H3C60

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, 140G MCCB, Electronic LSI Breaker

Technical Specifications

Rated Current: 60 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 24-60 A
Instantaneous Protection Adjustment Range: 60-600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Suitable for Isolation: Yes
Rated Short Circuit Breaking Capacity (ICU): 10 kA
Rated Short Circuit Breaking Capacity (ICS): 10 kA
Short Time Protection Adjustment Range: 60-600 A
Rated Impulse Withstand Voltage: 8 kV
Reverse Connection of Supply Possible: Yes
Electrical Life at Un in Service Cycles: 8000 cycles
Power Loss: 3.8 W
DIN Rail Top Hat Rail Mounting Optional: Yes
Mechanical Life Service Cycles: 25000 cycles
Rated Surrounding Temperature Without Derating: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 36 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 36kA 3P 60A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.

Non-Returnable & Non-Cancellable
