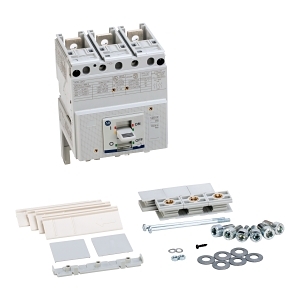

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 60A Electronic LSI
Brand: NHP
SKU: 140GJ3H3C60
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 60A
Technical Specifications
- Rated Current: 60 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 24-60 A
- Instantaneous Protection Adjustment Range: 60-600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Short Time Protection Adjustment Range: 60-600 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 8000 cycles
- Power Loss: 3.8 W
- Mechanical Life Service Cycles: 25000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB J Frame 50kA 3P 60A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
