Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB J Frame 70kA 3P 160A Adjustable Thermal Magnetic

Trade Discount 25%

SKU: 140GJ6F3D16

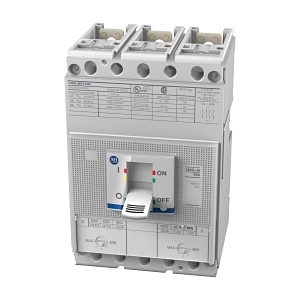

Allen-Bradley 140G MCCB J Frame 70kA 3P 160A Adjustable Thermal Magnetic

$2,784.70 List price: $3,697.70

+ −

30 Days Return Delivery Options

Weight: 2.500 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB J Frame 70kA 3P 160A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJ6F3D16

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 112-160 A
Instantaneous Protection Adjustment Range: 800-1600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 15 kA
Rated Short Circuit Breaking Capacity (ICS): 15 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 26.7 W
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and can handle high operational voltages.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Power distribution systems

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in power management.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140G MCCB J Frame 70kA 3P 160A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
