SKU: 140GJ6F3D20

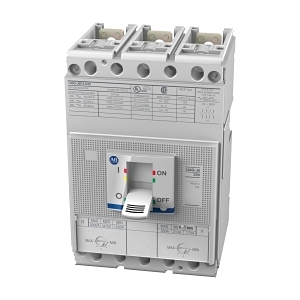

Allen-Bradley 140G MCCB J Frame 70kA 3P 200A Adjustable Thermal Magnetic

$2,784.70 List price: $3,697.70

+ −

30 Days Return Delivery Options

Weight: 2.500 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB J Frame 70kA 3P 200A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJ6F3D20

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 200 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 35.7 W
Suitable for Isolation: Yes
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 70 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Power distribution systems
General: Electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 70kA 3P 200A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
