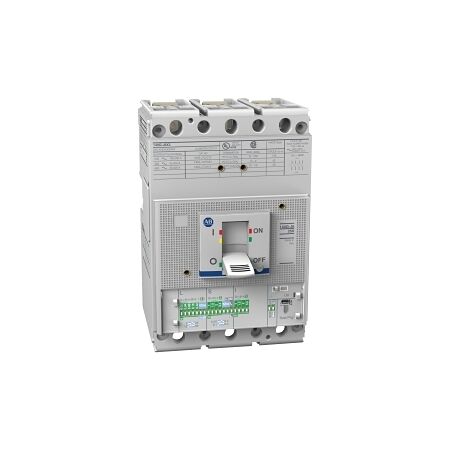

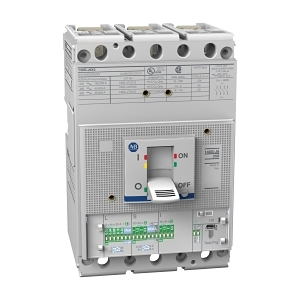

Product Name/Title: Allen-Bradley 140G MCCB J Frame 70kA 3P 250A Electronic LSI
Brand: NHP
SKU: 140GJ6H3D25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 65.4 W
- Rated Impulse Withstand Voltage: 8 kV
- Suitable for Isolation: Yes
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Power distribution systems
- General: Electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame 70kA 3P 250A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
Non-Returnable & Non-Cancellable
