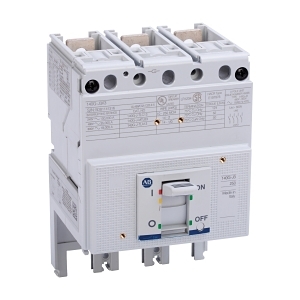

Product Name/Title: Allen-Bradley 140G MCCB J Frame Less Trip Unit 35kA 3P
Brand: NHP
SKU: 140GJ3X3
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 250A
Technical Specifications
- Rated current: 250 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 35 kA at 415 V
- Rated service short circuit breaking capacity: 50 kA at 415 V
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 12 kA at 690 V
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Rated surrounding temperature: -40 to 40 °C
- Maximum operating temperature: 75 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 150mm x 117mm x 105mm
- Weight: 5 kg
Key Features
- Rated current: 250 A
- 3 poles for three-phase applications
- Short circuit breaking capacity of 35 kA at 415 V
- Rated insulation voltage of 1000 V
- Mechanical life of 25,000 cycles
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Designed for high reliability and longevity, reducing waste and maintenance needs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Less Trip Unit 35kA 3P is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
