Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB J Frame Trip Unit 3P 200A Adjustable Thermal Magnetic

Trade Discount 25%

SKU: 140GJTF3D20

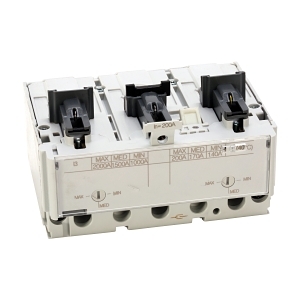

Allen-Bradley 140G MCCB J Frame Trip Unit 3P 200A Adjustable Thermal Magnetic

$493.40 List price: $655.20

+ −

30 Days Return Delivery Options

Weight: 5.000 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 3P 200A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJTF3D20

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 200 A
Number of Poles: 3
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 140-200 A
Instantaneous Protection Adjustment Range: 1000-2000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 200mm x 150mm x 105mm
Weight: 5.0 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
Rated for 200A with a 3-pole configuration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control centers, machinery protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame Trip Unit 3P 200A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
