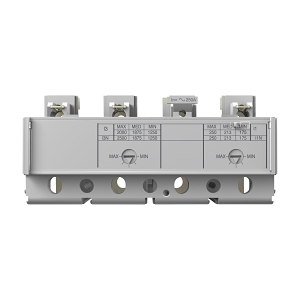

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 125A Adjustable Thermal Magnetic
Brand: NHP
SKU: 140GJTF4D12
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Trip Unit
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 4
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 88-125 A
- Instantaneous Protection Adjustment Range: 625-1250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 8 kV
- Rated Surrounding Temperature: -40 to 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40 to 80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 100mm x 140mm
- Weight: 1.5 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- Rated for 125A with a 4-pole configuration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control centers, machinery protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and AS/NZS 3820 for essential safety requirements.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 125A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
