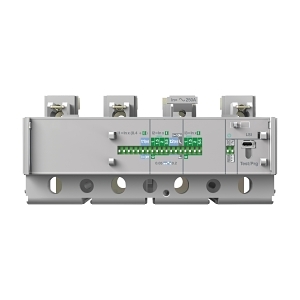

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 250A Electronic LSI
Brand: NHP
SKU: 140GJTH4D25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 4
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 100-250 A
- Instantaneous Protection Adjustment Range: 250-2500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment Range: 250-2500 A
- Rated Impulse Withstand Voltage: 8 kV
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 200mm x 140mm
- Weight: 5 kg
Key Features
- Electronic release for precise trip settings.
- Adjustable long time overload protection from 100-250 A.
- Instantaneous protection adjustment range from 250-2500 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed for high performance in various environmental conditions.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 250A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
