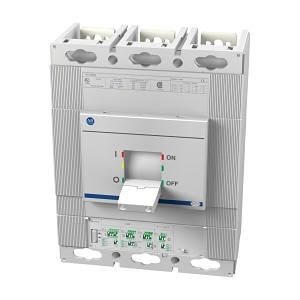

Product Name/Title: Allen-Bradley 140G MCCB M Frame 100kA 3P 630A Electronic LSI
Brand: NHP
SKU: 140GM0H3D63
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 100 kA
- Rated Service Short Circuit Breaking Capacity: 75 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Instantaneous Protection Adjustment Range: 945-7560 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 30 kA
- Rated Short Circuit Breaking Capacity (ICS): 22.5 kA
- Short Time Protection Adjustment Range: 378-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 7000 cycles
- Short Time Withstand Current (ICW 1 sec): 10 kA
- Power Loss: 90 W
- Mechanical Life Service Cycles: 20000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 159mm x 210mm
- Weight: 12.1 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 100 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB M Frame 100kA 3P 630A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
