SKU: 140GM5F3D60

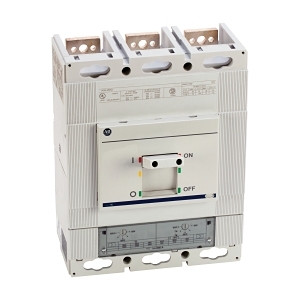

Allen-Bradley 140G MCCB M Frame 50kA 3P 600A Adjustable Thermal Magnetic

$5,062.60 List price: $6,722.50

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Allen-Bradley 140G MCCB M Frame 50kA 3P 600A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GM5F3D60

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 600 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 420-600 A
Instantaneous Protection Adjustment Range: 3000-6000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 22 kA
Rated Short Circuit Breaking Capacity (ICS): 16.5 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 7000 cycles
Mechanical Life: 20000 cycles
Power Loss: 90 W
Max Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 268mm x 159mm x 210mm
Weight: 12.1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable short circuit protection.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Manufacturing facilities, machinery protection
Commercial: Large buildings, electrical distribution systems

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame 50kA 3P 600A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
