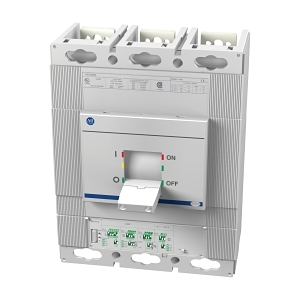

Product Name/Title: Allen-Bradley 140G MCCB M Frame 50kA 3P 630A Electronic LSIG Maintenance Instantaneous
Brand: NHP
SKU: 140GM5K3D63
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 800 A
- Rated Insulation Voltage: 1000 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 7000 cycles
- Mechanical Life: 20000 cycles
- Power Loss: 90 W
- Rated Impulse Withstand Voltage: 8 kV
- Dimensions (H x L x W): 268mm x 159mm x 210mm
- Weight: 12.1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- Long time overload protection adjustment range of 252-630 A.
- Instantaneous protection adjustment range of 945-7560 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB M Frame 50kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
