Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB M Frame 50kA 3P 800A Adjustable Thermal Magnetic

Trade Discount 25%

SKU: 140GM5F3D80

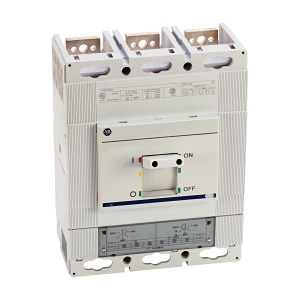

Allen-Bradley 140G MCCB M Frame 50kA 3P 800A Adjustable Thermal Magnetic

$5,062.60 List price: $6,722.50

+ −

30 Days Return Delivery Options

Weight: 12.100 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB M Frame 50kA 3P 800A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GM5F3D80

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 800A

Technical Specifications

Rated Current: 800 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Long Time Overload Protection Adjustment Range: 580-800 A
Instantaneous Protection Adjustment Range: 4000-8000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 22 kA
Rated Short Circuit Breaking Capacity (ICS): 16.5 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 5000 cycles
Mechanical Life: 20000 cycles
Power Loss: 93 W
Rated Surrounding Temperature: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 268mm x 159mm x 210mm
Weight: 12.1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable short circuit protection.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Environmental Benefits

Designed for long mechanical life, reducing waste and resource consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame 50kA 3P 800A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
