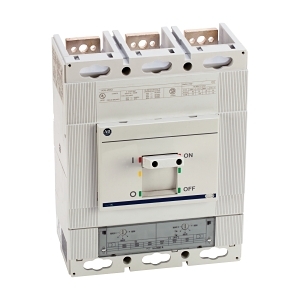

Product Name/Title: Allen-Bradley 140G MCCB M Frame 50kA 4P 630A Adjustable Thermal Magnetic
Brand: NHP
SKU: 140GM5F4D63
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 441-630 A
- Instantaneous Protection Adjustment Range: 3150-6300 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 22 kA
- Rated Short Circuit Breaking Capacity (ICS): 16.5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 7000 cycles
- Mechanical Life: 20000 cycles
- Power Loss: 122.4 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 159mm x 280mm
- Weight: 15.1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 50 kA for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140G MCCB M Frame 50kA 4P 630A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
