Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB M Frame 65kA 3P 800A Moulded Case Switch Isolator

Trade Discount 25%

SKU: 140GM6S3D80

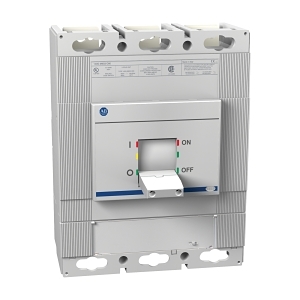

Allen-Bradley 140G MCCB M Frame 65kA 3P 800A Moulded Case Switch Isolator

$5,680.30 List price: $7,542.70

+ −

30 Days Return Delivery Options

Weight: 12.100 kg

Description

Product Name/Title: Allen-Bradley 140G MCCB M Frame 65kA 3P 800A Moulded Case Switch Isolator

Brand: NHP

SKU: 140GM6S3D80

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator

Technical Specifications

Rated current: 800 A
Number of poles: 3
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 70 kA
Rated service short circuit breaking capacity: 70 kA
Type of protection trip unit: Non auto-switch
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Suitable for isolation: Yes
Rated short circuit breaking capacity at 690 V: 25 kA
Rated impulse withstand voltage: 8 kV
Electrical life: 5000 cycles
Mechanical life: 20000 cycles
Power loss: 96 W
Rated surrounding temperature: 40 °C
Maximum operating temperature: 75 °C
Storage temperature: -40-80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 268mm x 159mm x 210mm
Weight: 12.1 kg

Key Features

Rated current: 800 A
Three poles for enhanced circuit protection
High breaking capacity of 70 kA at 415 V

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame 65kA 3P 800A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable
