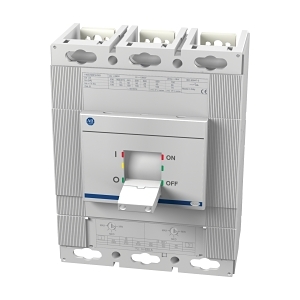

Product Name/Title: Allen-Bradley 140G MCCB M Frame 65kA 4P 800A Moulded Case Switch Isolator
Brand: NHP
SKU: 140GM6S4D80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator
Technical Specifications
- Rated current: 800 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 70 kA
- Rated service short circuit breaking capacity: 70 kA
- Type of protection trip unit: Non auto-switch
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 25 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Electrical life: 5000 cycles
- Mechanical life: 20000 cycles
- Power loss: 128 W
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 268mm x 159mm x 280mm
- Weight: 15.1 kg
Key Features
- Rated current: 800 A
- 4 poles for versatile applications
- High breaking capacity of 70 kA at 415 V
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for isolation and circuit protection in various electrical systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB M Frame 800A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial power distribution and protection.
