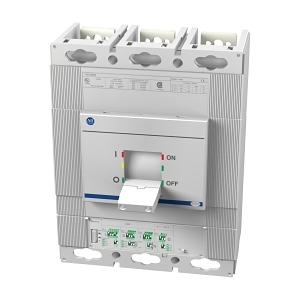

Product Name/Title: Allen-Bradley 140G MCCB M Frame 70kA 3P 600A Electronic LSIG
Brand: NHP
SKU: 140GM6I3D60
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 600A
Technical Specifications
- Rated Current: 600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 240-600 A
- Instantaneous Protection Adjustment Range: 900-7200 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
- Rated Short Circuit Breaking Capacity at 690 V AC: 18.7 kA
- Short Time Protection Adjustment Range: 360-6000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 7000 cycles
- Mechanical Life Service Cycles: 20000 cycles
- Power Loss: 86.4 W
- Dimensions (H x L x W): 268mm x 159mm x 210mm
- Weight: 12.1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- High short circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Allen-Bradley 140G MCCB M Frame 70kA 3P 600A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
