Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/Allen-Bradley 140G MCCB M Frame 70kA 3P 630A Electronic LSIG Maintenance Instantaneous

Trade Discount 25%

SKU: 140GM6K3D63

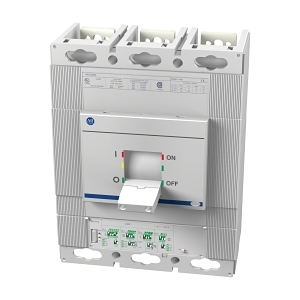

Allen-Bradley 140G MCCB M Frame 70kA 3P 630A Electronic LSIG Maintenance Instantaneous

$8,931.00 List price: $11,859.20

+ −

30 Days Return Delivery Options

Brand: NHP

Description

Product Name/Title: Allen-Bradley 140G MCCB M Frame 70kA 3P 630A Electronic LSIG Maintenance Instantaneous

Brand: NHP

SKU: 140GM6K3D63

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Circuit Breaker

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 252-630 A
Instantaneous Protection Adjustment Range: 945-7560 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 25 kA
Rated Short Circuit Breaking Capacity (ICS): 18.7 kA
Short Time Protection Adjustment Range: 378-6300 A
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 7000 cycles
Mechanical Life: 20000 cycles
Power Loss: 90 W
Rated Surrounding Temperature: 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 268mm x 159mm x 210mm
Weight: 12.1 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection.
Suitable for isolation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Power distribution systems

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame 70kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.

Non-Returnable & Non-Cancellable
