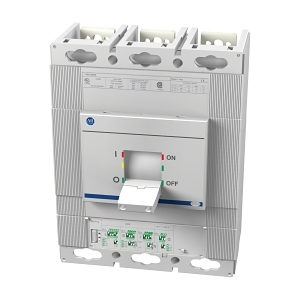

Product Name/Title: Allen-Bradley 140G MCCB M Frame 70kA 3P 800A Electronic LSIG
Brand: NHP
SKU: 140GM6I3D80
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 800A
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 1200-8400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 18.7 kA
- Short Time Protection Adjustment Range: 480-8000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 5000 cycles
- Mechanical Life: 20000 cycles
- Power Loss: 96 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 159mm x 210mm
- Weight: 12.1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Complies with AS/NZS 60950 for safety and performance standards.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB M Frame 70kA 3P 800A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
