140GN6S4E12

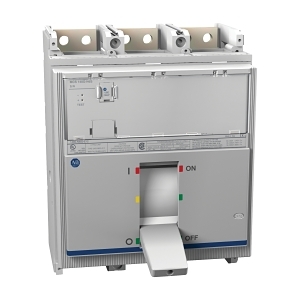

Allen-Bradley 140G MCCB N Frame 65kA 4P 1200A Moulded Case Switch Isolator


$11,957.20 List price: $15,877.60
+

Weight: 12.500 kg

Product Name/Title: Allen-Bradley 140G MCCB N Frame 65kA 4P 1200A Moulded Case Switch Isolator

Brand: NHP

SKU: 140GN6S4E12

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator

Technical Specifications
  • Rated ultimate short circuit breaking capacity: 70 kA at 415 V, 50 Hz
  • Rated service short circuit breaking capacity: 70 kA at 415 V, 50 Hz
  • Rated insulation voltage: 1000 V
  • Rated frequency: 50-60 Hz
  • Rated short circuit breaking capacity: 42 kA at 690 V AC
  • Rated impulse withstand voltage: 8 kV
  • Electrical life: 2000 cycles
  • Mechanical life: 10000 cycles
  • Power loss: 336 W
  • Maximum operating temperature: 75 °C
  • Storage temperature: -40 to 80 °C
  • Dimensions (H x L x W): 268mm x 154mm x 280mm
  • Weight: 12.5 kg
Key Features
  • Rated current: 1200 A
  • Four poles for versatile applications
  • High short-circuit breaking capacity of 70 kA
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in manufacturing facilities
  • Commercial: Electrical systems in large buildings and infrastructure
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high performance and reliability in various environmental conditions.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Allen-Bradley 140G MCCB N Frame 65kA 4P 1200A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
