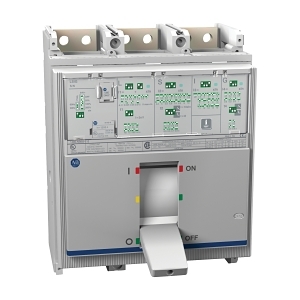

Product Name/Title: Allen-Bradley 140G MCCB N Frame 70kA 4P 1200A Electronic LSIG
Brand: NHP
SKU: 140GN6I4E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-18000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity: 42 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 2000 cycles
- Mechanical Life: 10000 cycles
- Power Loss: 336 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 154mm x 280mm
- Weight: 12.5 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in large buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB N Frame 70kA 4P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
