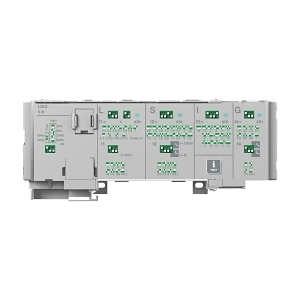

Product Name/Title: Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG
Brand: NHP
SKU: 140GNTIE12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 3
- Type of Protection: Electronic release
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment: 480-1200 A
- Instantaneous Protection Adjustment: 1800-18000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment: 720-12000 A
- Rated Impulse Withstand Voltage: 8 kV
- Rated Surrounding Temperature: -40 to 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40 to 80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 300mm x 150mm x 210mm
- Weight: 10 kg
Key Features
- Electronic release for precise trip settings.
- LSIG trip curve for comprehensive protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection for electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency and reliability in power management.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
