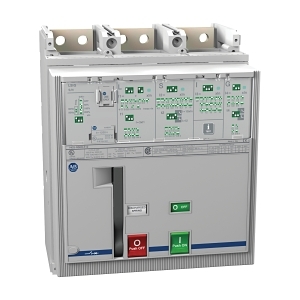

Product Name/Title: Allen-Bradley 140G MCCB NS Frame 70kA 3P 1200A Electronic LSIG
Brand: NHP
SKU: 140GNS6I3E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 1250 A
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-18000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 42 kA
- Rated Short Circuit Breaking Capacity at 690 V AC: 31.5 kA
- Short Time Protection Adjustment Range: 720-12000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 2000 cycles
- Mechanical Life Service Cycles: 10000 cycles
- Power Loss: 252 W
- Dimensions (H x L x W): 268mm x 193mm x 210mm
- Weight: 11 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- Long time overload and short time protection adjustment ranges.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB NS Frame 70kA 3P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
