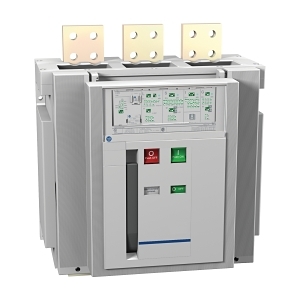

Product Name/Title: Allen-Bradley 140G MCCB R Frame 125kA 3P 2500A Moulded Case Switch Isolator
Brand: NHP
SKU: 140GR12S3E25
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker Isolator
Technical Specifications
- Rated current: 2500 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 80 kA
- Rated service short circuit breaking capacity: 60 kA
- Type of protection trip unit: Non auto-switch
- Frame size rating: 3000 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Rated short circuit breaking capacity: 40 kA at 690 V AC
- Rated impulse withstand voltage: 12 kV
- Power loss: 219 W
- Rated surrounding temperature: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 382mm x 284.5mm x 428mm
- Weight: 79 kg
Key Features
- Rated current: 2500 A
- Three poles for enhanced circuit protection
- High short-circuit breaking capacity of 80 kA
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB R Frame 125kA 3P 2500A Moulded Case Switch Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
