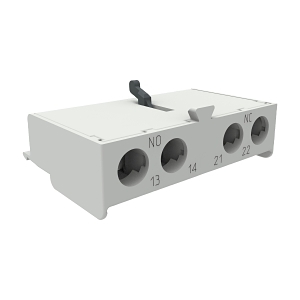

Product Name/Title: Allen-Bradley 140MP Auxiliary Contact with 1NO Contact and 1NC Contact Right Side Mount
Brand: NHP
SKU: 140MPAASA11
Alternatively Known As: Auxiliary Contact Block, Motor Protection Contact, 140MPAASA11
Technical Specifications
- Number of Contacts: 1NO, 1NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 6 A
- Rated Operation Current at AC 15 (24V): 6 A
- Rated Operation Current at AC 15 (120V): 6 A
- Rated Operation Current at AC 15 (240V): 4 A
- Rated Operation Current at AC 15 (400V): 3 A
- Rated Operation Current at DC 13 (24V): 2 A
- Rated Operation Current at DC 13 (125V): 0.55 A
- Rated Operation Current at DC 13 (250V): 0.27 A
- Minimum Contact Rating Current: 5 mA
- Minimum Contact Rating Voltage: 17 V
- Mounting Method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Rated insulation voltage of 690 V.
- Side mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency in motor control applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140MP Auxiliary Contact is available now for immediate purchase. Ideal for industrial and commercial motor protection applications.
