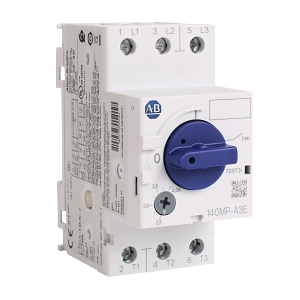

Product Name/Title: Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 16 to 20A
Brand: NHP
SKU: 140MPA3EC20
Alternatively Known As: Motor Protection Circuit Breaker, 140MP Circuit Breaker
Technical Specifications
- Rated Permanent Current: 20 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 16-20 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 15 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 10 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.8mm x 85.5mm x 45mm
- Weight: 0.33 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 16 to 20 A.
- IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley 140MP Motor Protection Circuit Breaker Frame A 16 to 20A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
