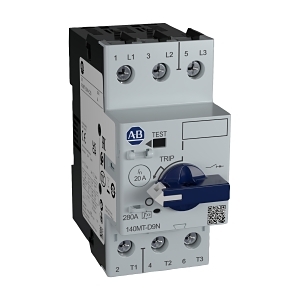

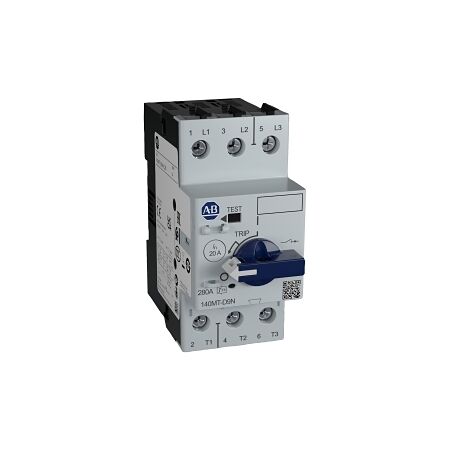

Product Name/Title: Allen-Bradley 140MT Motor Circuit Protector 25A
Brand: NHP
SKU: 140MTD9NC25
Alternatively Known As: Motor Circuit Breaker, Motor Protection Circuit Breaker, 140MTD9NC25
- Rated Permanent Current: 25 A
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 65 kA at 400 V AC
- Rated Operation Power at AC 3 400 V: 11 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
- Weight: 0.41 kg
- Magnetic switch-off technique for reliable operation.
- Rated permanent current of 25 A.
- Rated short circuit breaking capacity of 65 kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in various applications
- Commercial: Equipment requiring circuit protection
- Complies with relevant Australian standards for electrical safety.
- Designed for efficient operation, reducing energy waste.
Standard warranty applies.
The Allen-Bradley 140MT Motor Circuit Protector 25A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
