140MTC3EC20

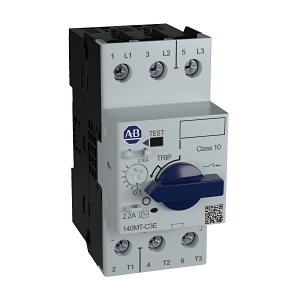

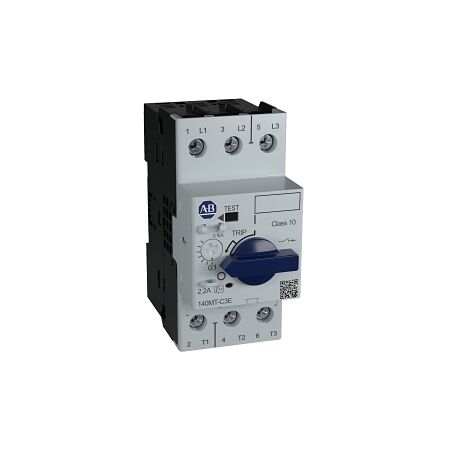

Allen-Bradley 140MT Motor Protection Circuit Breaker 14.5 to 20A


$399.20 List price: $530.00
+

Weight: 0.360 kg

Product Name/Title: Allen-Bradley 140MT Motor Protection Circuit Breaker 14.5 to 20A

Brand: NHP

SKU: 140MTC3EC20

Alternatively Known As: Motor Protection Circuit Breaker, 140MT Circuit Breaker

Technical Specifications
  • Rated Permanent Current: 20 A
  • Max Rated Operation Voltage: 690 V
  • Rated Operation Power at AC 3, 400 V: 10 kW
  • Number of Poles: 3
  • Degree of Protection: IP2X
  • Max Tightening Torque: 2.5 Nm
  • Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
  • Weight: 0.36 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 14.5 to 20 A.
  • Rated short circuit breaking capacity of 50 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery and equipment
  • Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed to enhance safety and reliability in electrical systems.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140MT Motor Protection Circuit Breaker 14.5 to 20A is available now for immediate purchase. Ideal for industrial and commercial applications requiring motor protection.
