140MTD9VC36

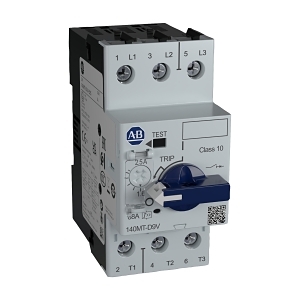

Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A


$626.20 List price: $831.60
+

Weight: 0.410 kg

Product Name/Title: Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A

Brand: NHP

SKU: 140MTD9VC36

Alternatively Known As: Motor Protection Circuit Breaker, 140MT Circuit Breaker

Technical Specifications
  • Rated Permanent Current (Iu): 36 A
  • Max Rated Operation Voltage (Ue): 690 V
  • Rated Operation Power at AC 3, 400 V: 18.5 kW
  • Number of Poles: 3
  • Degree of Protection: IP2X
  • Max Tightening Torque: 2.5 Nm
  • Type of Control Element: Turn handle
  • Type of Electrical Connection: Screw connection
  • Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
  • Weight: 0.41 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 30 to 36 A.
  • Rated short-circuit breaking capacity of 50 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery and equipment
  • Commercial: Electrical distribution systems requiring overload protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed to enhance safety and reliability in electrical systems.
Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140MT Motor Protection Circuit Breaker 30 to 36A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
