1606XLS480EC

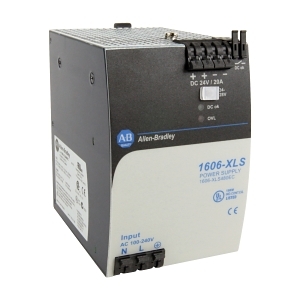

Allen-Bradley 1606 Power Supply HP 1Phase 100 to 240V AC to 24 to 28V DC 480W 20A Confomal Coated


$1,687.20 List price: $2,240.40
+

Weight: 1.200 kg

Product Name/Title: Allen-Bradley 1606 Power Supply HP 1Phase 100 to 240V AC to 24 to 28V DC 480W 20A Confomal Coated

Brand: NHP

SKU: 1606XLS480EC

Alternatively Known As: Switched Mode Power Supply, DC Power Supply, 1606 Power Supply

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Supply Voltage (AC 50 Hz): 100-240 V
  • Rated Supply Voltage (DC): 110-150 V
  • Frequency: 50-60 Hz
  • Nominal Current In: 4.6 A
  • Max Starting Current: 9 A
  • Secondary Output Voltage: 24-28 V
  • Max Output Current: 20 A
  • Nominal Output Current: 20 A
  • Nominal Output Voltage: 24 V
  • Power Output: 480 W
  • Power Consumption: 31.4 VA
  • Type of Electric Connection: Spring clamp connection
  • Output Voltage Stabilized: Yes
  • Rail Mounting Possible: Yes
  • Wall Mounting Possible: Yes
  • Operating Temperature: -25-70 °C
  • Dimensions (H x L x W): 124mm x 127mm x 82mm
  • Weight: 1.2 kg
Key Features
  • Switched Mode Power Supply
  • Efficiency of 93.9%
  • Adjustable secondary voltage
  • LED indication for operational status
  • IP20 protection rating
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: Power supply for various electronic devices
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Designed for energy efficiency and reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 1606 Power Supply is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power supply.

Non-Returnable & Non-Cancellable
