194EA1001753

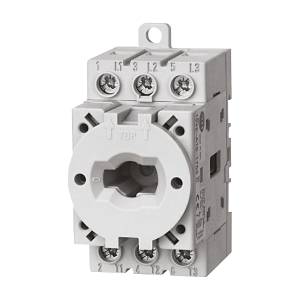

Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 100A


$363.40 List price: $482.50
+

Weight: 2.500 kg

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 100A

Brand: NHP

SKU: 194EA1001753

Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch

Technical Specifications
  • Max Rated Operation Voltage: 690 V
  • Rated Permanent Current: 100 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power at AC 3-400 V: 37 kW
  • Rated Operation Power at AC 23-400 V: 45 kW
  • Rated Short Time Withstand Current: 2500 kA
  • Rated Insulation Voltage: 600 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Frequency: 60 Hz
  • Degree of Protection: IP20
  • Conductor Cross Section: 4-50 mm²
  • Dimensions (H x L x W): 230mm x 120mm x 175mm
  • Weight: 2.5 kg
Key Features
  • 3 Pole design with a rated permanent current of 100 A.
  • IP20 protection degree for front side.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for use in manufacturing and processing facilities
  • Commercial: Ideal for commercial electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
