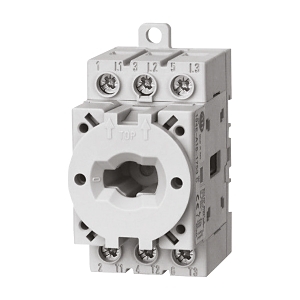

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 16A
Brand: NHP
SKU: 194EA161753
Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 16 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power at AC 3-400 V: 5.5 kW
- Rated Operation Power at AC 23-400 V: 7.5 kW
- Rated Short Time Withstand Current: 800 kA
- Rated Insulation Voltage: 600 V
- Rated Impulse Withstand Voltage: 8 kV
- Frequency: 60 Hz
- Degree of Protection: IP20
- Padlock Locking: Yes
- Dimensions (H x L x W): 63mm x 80mm x 36mm
- Weight: 0.5 kg
Key Features
- 3 Pole design for versatile applications.
- Rated for 16A operation with a maximum voltage of 690V.
- IP20 protection rating for safe operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
