194EA321753

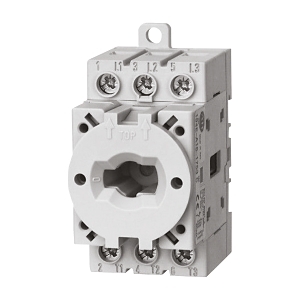

Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 32A


$139.30 List price: $184.90
+

Weight: 1.500 kg

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 32A

Brand: NHP

SKU: 194EA321753

Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch

Technical Specifications
  • Max Rated Operation Voltage: 690 V
  • Rated Permanent Current: 32 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power at AC 3-400 V: 11 kW
  • Rated Operation Power at AC 23-400 V: 15 kW
  • Rated Short Time Withstand Current: 900 kA
  • Rated Insulation Voltage: 600 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Frequency: 60 Hz
  • Degree of Protection: IP20
  • Conductor Cross Section: 1.5-16 mm²
  • Dimensions (H x L x W): 150mm x 86mm x 95mm
  • Weight: 1.5 kg
Key Features
  • 3 Pole design for versatile applications.
  • Rated for 32A with a maximum operation voltage of 690V.
  • IP20 protection rating for safe operation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment control
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with relevant Australian electrical safety standards.
Environmental Benefits
  • Designed for high efficiency and reliability in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
